1963-1970 C10 Complete Coil-Over Suspension System

$7,120.00
1963-1972 C10 with StrongArm System Wood Bed Spacer Kit
Please choose
In stock
Product Details

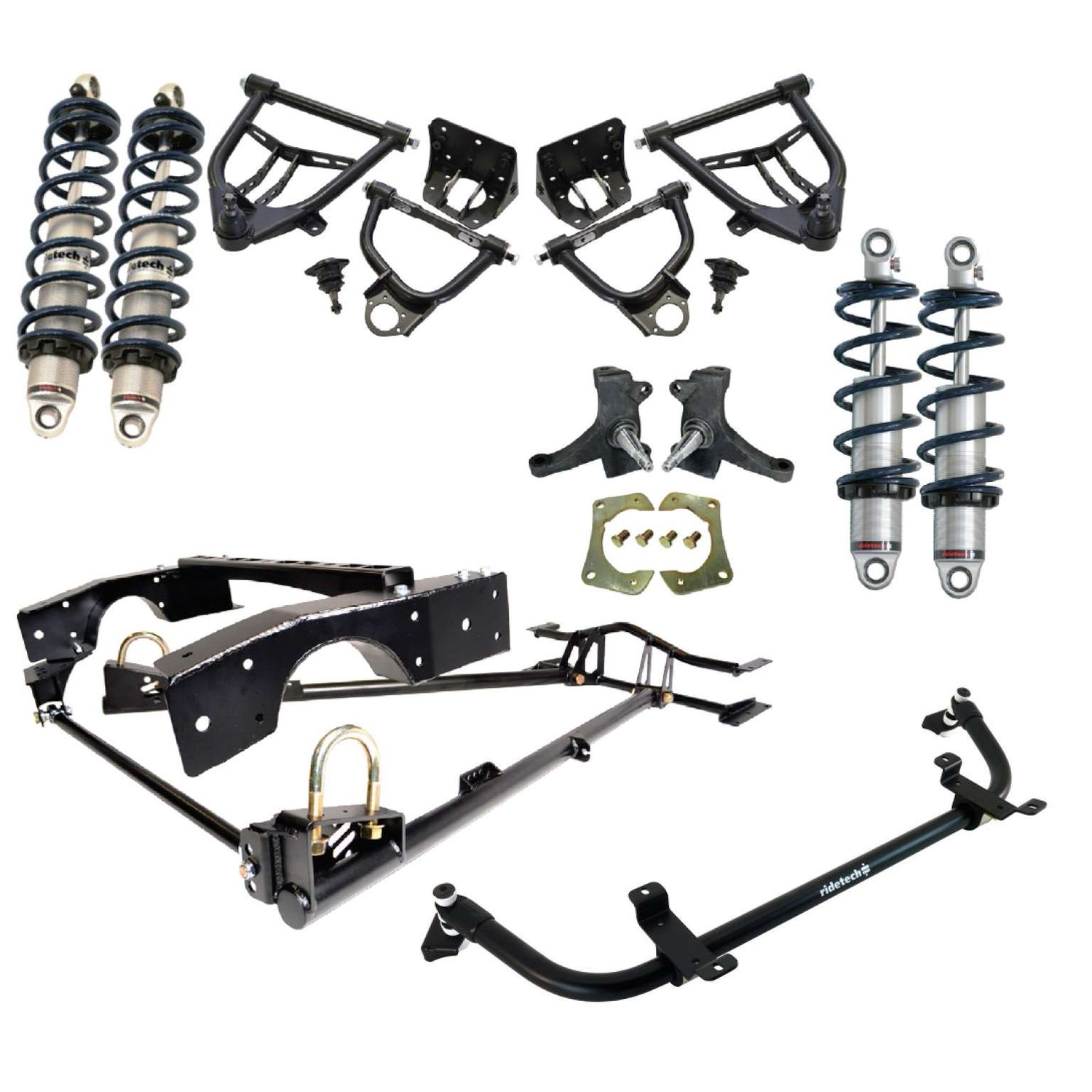

This Coil-Over System is specifically designed for the 1963-1970 Chevrolet & GMC C10 Truck and includes everything needed to provide a lowered stand and excellent ride quality and handling. The package contains front upper and lower control arms, 2.5″ drop spindles, front and rear HQ Series Coil-Overs, front sway bar, rear StrongArms with C-Notches, and adjustable panhard bar. The benefit of buying a complete suspension system is that it takes all of the guesswork out when purchasing a new suspension.

  • 2.5″ Drop Spindles  allows a lowered stance while maintaining suspension travel.   The modular design allows for variety of brake options including Baer, Wilwood or the stock HD brakes (1.25″ wide rotors).
  • Upper & Lower StrongArms  feature corrected ball joint angles and increased caster to improve high speed stability and steering feel.  They are powder coated black and fully assembled with ball joints, bushing and cross shafts, ready for installation.
  • HQ Series Coil-Overs  utilize an impact forged aluminum body and Monotube design to deliver excellent ride quality and handling.     They allow fine tuning of the ride quality and handling the rebound knob is located at the top of the shock for under hood access. They come standard with a 1,000,0001 Mile Warranty.  Interested in AutoCross or Road Course Racing?  Consider the  TQ Series CoilOvers
  • Rear StrongArm   System  is completely bolt-on and provides mounting for the rear Coil-Overs. The front trailing arm crossmember is designed to allow the exhaust to be run through it rather than under it providing additional ground clearance.  The panhard is adjustable so you can optimize your tire clearance at the new lowered height and the mount has been relocated to optimize the bar length and angle for the lowered height. This helps keep the rear end centered in the truck and lowers the roll center to minimize body roll.   We use R-Joints on both ends of the bar.  The C-notches are included with the kit and FIT the frame rail.  The trailing arms optimizes the driveline angles for the lowered stance and utilize R-Joint at the front attachment.  Compatible with all bed and cab configurations (requires use of 1 piece drive shaft.)   *Shim kit required for installation in wood bed applications.
  • Front MucleBar Sway Bar  is manufactured from massive 1.5″ x .250″ wall tubing to minimize body roll and includes billet aluminum frame straps (anodized black) and low friction bushings.

OPTIONS:

  • Bed Floor- Choose you bed floor option, if wood floor is chosen additional spacers are included.
