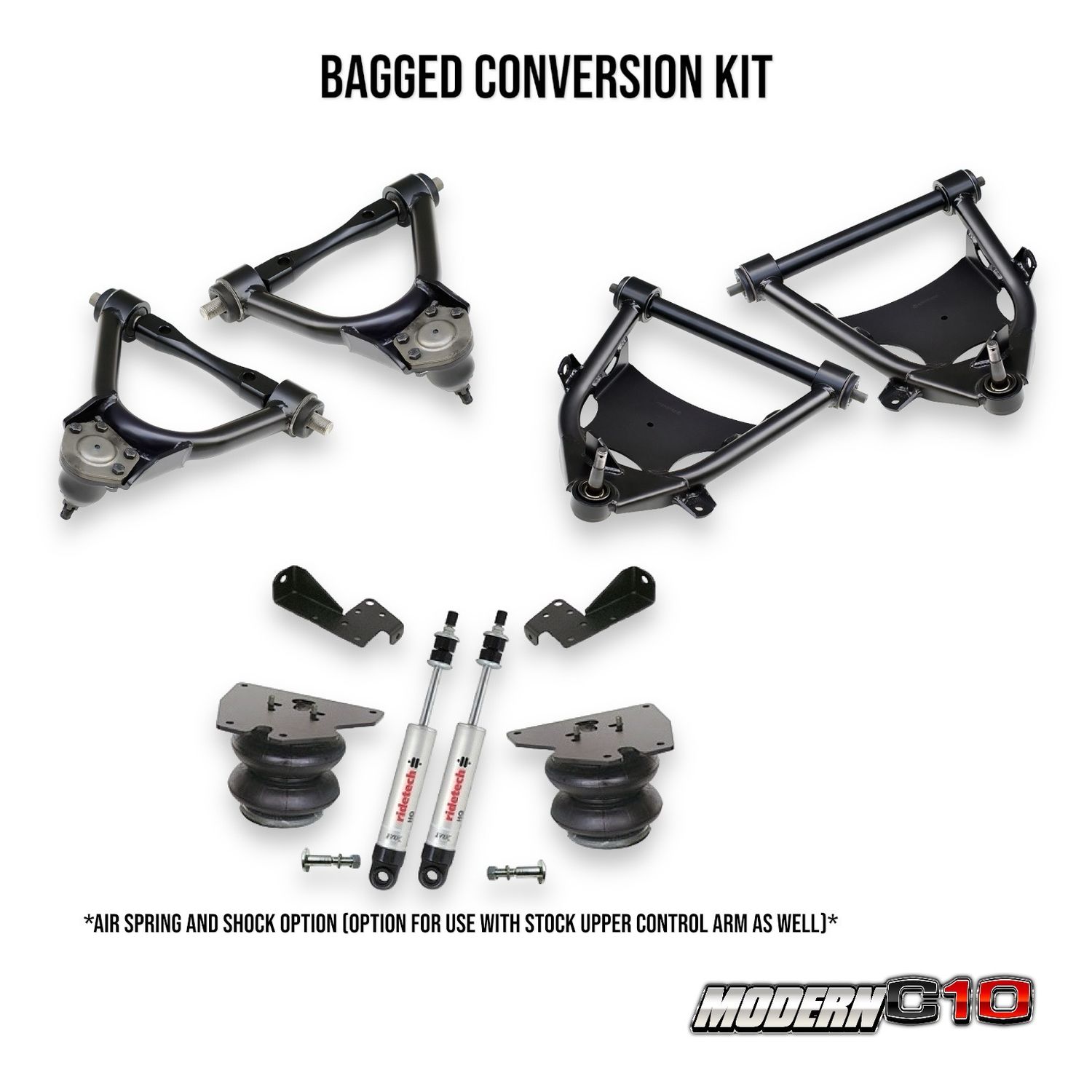

Bagged Conversion Lower “StrongArm”

Designed for use with Ridetech sway bar  Part # 11369120.

Development  – StrongArms™ are developed by Ridetech® in Jasper, Indiana on an actual running, driving vehicle. This allows us to properly address ALL fitment and performance issues. It also allows us to document an installation, demonstrate the installation to our sales techs and dealers, and allows ongoing evaluation of the performance of the StrongArms™

Design  – We think the best way to design any component is to keep it simple. That is why Strong Arms™ are designed with as few components as possible. They are manufactured in house on our 4 axis tubing bender that allows precise, repeatable bends that no other machine can achieve. We can create elegant tubing bends that would otherwise require several separate welded components. The perimeter of the StrongArm is contoured to allow maximum wheel clearance and turning radius. A steel plate provides a strong attachment for the CoolRide air spring and a dedicated shock tab is welded to the rear leg of the arm.

Components  – Powder coated in a satin black finish and completely assembled with ball joints, bushings and cross shafts. To reduce deflection and stiction from the suspension movement Injection Molded Delrin Bushings are used, which are also impregnated with Teflon to eliminate the need for lubrication.

Geometry  – Properly designed control arms will add more positive caster (without a pile of shims) and will position the wheel in the wheel opening for maximum clearance. Ball joint angles are repositioned to prevent binding.

Bagged Conversion Upper “StrongArm”

Front upper tubular control arms for  lowered Chevy and GMC C10, C15 and C1500 trucks. Designed to be used CoolRide air suspension system or as factory replacements.

Development    –    StrongArms™ are developed by Ridetech® in Jasper, Indiana on an actual running, driving vehicle. This allows us to properly address ALL fitment and performance issues. It also allows us to document an installation, demonstrate the installation to our sales techs and dealers, and allows ongoing evaluation of the performance of the StrongArms™

Design    –    We think the best way to design any component is to keep it simple. That is why Strong Arms™ are designed with as few components as possible.  They are manufactured in-house on our 4 axis tubing bender that allows precise, repeatable bends that no other machine can achieve. We can create elegant tubing bends that would otherwise require several separate welded components.  The perimeter of the StrongArm is contoured to allow maximum wheel clearance and turning radius.

Components    –    Powder coated in a satin black finish and completely assembled with ball joints, bushings and cross shafts.  To reduce deflection and stiction from the suspension movement Injection Molded Delrin Bushings are used, which are also impregnated with Teflon to eliminate the need for lubrication.

Geometry    –    Properly designed control arms will add more positive caster and will position the wheel in the wheel opening for maximum clearance.   Ball joint angles are repositioned to prevent binding.

Front Air Spring and Shock Kit

Front CoolRide kit for C10. For use w/ RideTech lower arms. Includes air springs, brackets, HQ Series shocks, bolt on shock mounts & hardware.
