Design Your Strange Center Section

$1,269.00
Upgrade Differential
Please choose
Upgrade Case
Please choose
Upgrade Pinion Support
Please choose
Upgrade Yoke
Please choose
Upgrade U-Joint Strap Kit
Please choose
Gear Ratio
Please choose
In stock
Product Details

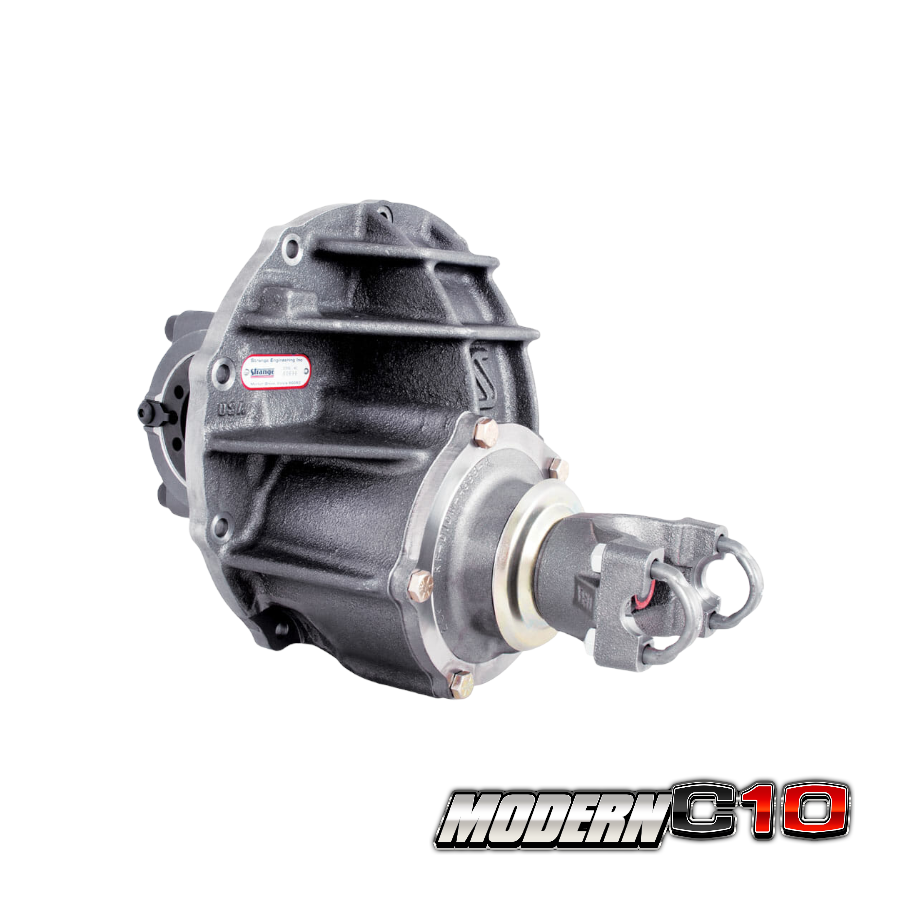

Strange Pro Iron Center Section Cases are reinforced with extra ribs and additional material; especially apparent in the areas of pinion support and carrier bearing bores. Massive chrome-moly bearing caps are retained by aircraft grade fasteners and solid steel adjuster nuts help to easily and securely setup ring and pinion preload and backlash. Specially engineered lubrication channels make Strange Pro Iron Center Sections the most reliable in the industry. All exterior bolt holes are spot-faced to prevent the possibility of lubricant leaks.


The Strange HD Pro Ford 9 inch Aluminum Third Member With Differential is designed for Drag Race applications and for the most abusive Hi-Performance street/strip applications. As with all Strange aluminum cases, it is crafted from 206-T4 heat treated aluminum. This premium aluminum has a 12% higher yield strength and a 32% higher tensile strength compared to commonly used 356-T6 aluminum. The billet aluminum pinion support has a unique oil channel that is machined 360º into the support to maximize oil flow to the pinion bearings as well as a large slot in the front to further boost oil circulation. The support is in contact with the bore of the case in two locations as opposed to one as found in normal cases. This additional contact area holds the pinion shaft much more securely resulting in better bearing and gear life. The tail bearing is oversized to handle more load and greater RPM than a stock tail bearing. Billet aluminum main caps encapsulate chrome-moly studs, provide the utmost support for the carrier bearings and significantly reduce ring gear deflection. There are several upgrade options available for differentials, and yokes for this aluminum third member.
